Product Name :

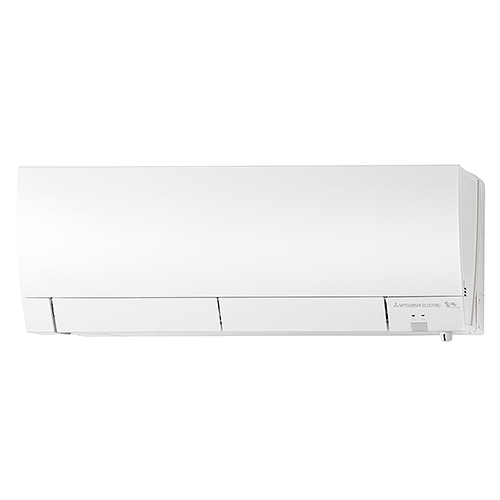

**Mitsubishi MSZFH12NA Ductless Split Wall Mounted 12000 BTU Inverter
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|
| Brand: |
Mitsubishi |
| Configuration: |
Hyper Heat Air Conditioner |
| Connection Method: |
Flared |
| Drain Pipe Size: |
5/8" |
| Electrical: |
208 / 230 V |
| Energy Source: |
Electric |
| Inverter: |
Yes |
| Liquid Line: |
1/4" |
| Low Ambient Operation: |
Yes |
| Model: |
MSZFH12NA |
| Nominal Capacity: |
1.25 Ton |
| Product Depth: |
9 3/16" |
| Product Height: |
12 11/16" |
| Product Length: |
36 7/16" |
| Product Ship Weight: |
31 lbs. |
| Refrigerant: |
R410A |
| Remote Control: |
Yes |
| Suction Line: |
3/8" |
| Unit Type: |
Indoor R-410A |
| UPC: |
MSZ-FH12NA |
| Warranty Terms - Compressor: |
7 Years |
| Warranty Terms - Parts: |
5 Years |
|
|
Introducing the STAR Lineup of Ductless Air-Conditioning and Heating Units
A breakthrough in pure comfort
- We offer more ENERGY STAR® systems than ever.
- ENERGY STAR Systems incorporate eco-comfort technology, dual and triple-allergen filtration, and whisper-quiet operation.
- New technology revolutionizes the heat pump.
- Space-saving design means easy and unobtrusive installation.
|
|
|
Mitsubishi offers more ENERGY STAR systems than ever, and we're the industry leader.
We have Energy Star rated systems with dramatic increases all the way up to 26 SEER.
Our units incorporate eco-comfort technology, dual and triple-allergen filtration, and are whisper-quiet.
Eco-comfort technology makes these systems smarter in how they use energy and minimizes their impact on the environment. Plus, there are many advanced features like the i-see™ Sensor, that automatically detects room temperature differences and adjusts for greater comfort. Mitsubishi Electric's advanced multi-stage filtration systems dramatically reduce allergens and help eliminate odors. Our indoor units operate with sound levels starting as low as 19dB(A), quieter than a human whisper.
Mitsubishi Electric offers the most technologically advanced heat pump systems in the world.
Unlike older, inefficient heat pumps, there is no cold air delivery with Mitsubishi Electric's Cooling & Heating systems. The Hot StartTM system doesn't activate the fan until the desired temperature is reached, so it never blows cold air. Select models use Hyper-Heating INVERTER (H2i®) technology that operates effectively down to -13º F. These models give true year-round comfort from a single system.
These units provide easy installation, simple service and longer warranties. Although, with our industry-leading reliability record, you won't have to worry much about that. Better yet, we've extended our warranties to seven years on compressors and five years on parts. |
|
|
Air Conditioning System
Revolutionary cooling and heating.
Mitsubishi Electric Cooling & Heating systems use advanced technologies to provide the ultimate in comfort control while minimizing energy consumption.
Some of the featured components of the systems include the following items:
INVERTER-driven compressor systems use only the exact amount of energy needed to cool or heat an area. So you can save energy and money while enjoying complete control over your comfort year-round.
Zone control is one of the main technological benefits our systems offer, enabling you to control the temperature within any space that has an indoor unit installed. The ability to condition the spaces in use and not keep unoccupied spaces conditioned allows exceptional energy conservation. Individualized comfort control is available from one to eight rooms connected to a single outdoor unit.
Standard and enhanced filtration systems provide air filtration that utilizes washable filters that can last up to 10 years; this feature is good both for you and the environment. Hybrid Catechin and blue-enzyme filters contained in each indoor unit remove allergens; each room has its own filter, therefore preventing cross contamination of air from room to room. Select systems incorporate an additional Platinum Catalyst filter for additional odor elimination.
Hot-Start™ technology regulates the fan on the indoor unit so that it does not blow any air until the unit has reached the desired temperature, thus preventing drafts of cold air.
i-see™ Sensor scans the lower portions of the room to detect hot or cold spots and to adjust temperature and airflow accordingly to maintain consistent comfort.
H2i® technology, available on select systems, provides heating capability effectively and efficiently even when temperatures outside fall as low as -13º F. This technology provides heat in extreme climates either to supplement existing systems or to serve as the main system in a new addition.
Control each room individually with handheld or wall-mounted smart controllers. Our controllers put comfort a push of a button away. Select Mode, Temperature, Fan Speed, Airflow, timer functions and more. |
How Air Conditioning Works
The tried and true, smart technology behind the Mitsubishi Electric Cooling & Heating systems of today has evolved from our introduction in the 1950s. Our technology allows energy efficient, individual comfort control with minimal impact on your home since we offer both ductless and limited length ducted solutions.
The technology behind Mitsubishi Electric Cooling & Heating systems is referred to in many different ways, including mini-split, multi-split, split-ductless, split-zoning, and variable refrigerant flow. Mitsubishi Electric split-zoning technology is the primary method for conditioning spaces in homes and commercial building around the world. That is why Mitsubishi Electric introduced this technology into North America over thirty years ago.
Split-zoning systems allow each room (or space) using an individual indoor air-handler to be controlled independently from other rooms, thus providing individualized comfort control within each room of a home.
Controlling your comfort is easy. Just use the smart remote controller to get your perfect temperature with the touch of a button. Adjust your mode of operation between COOL, HEAT, DRY or AUTO. AUTO mode will automatically decide if you need cooling or heating delivered to the space to maintain the set temperature. You can even adjust fan speed and the direction of the vane (on applicable units.) Everything you need to control your comfort is right there in your room with you; not in another room or a different floor. Comfort control - room by room.
Our INVERTER-driven compressor in the outdoor unit maximizes efficiency by automatically changing its speed to match the cooling and heating needs of a room. This technology allows us to ramp up compressor speed to quickly cool or heat a room (or multiple rooms) and reduce the compressor speed to maintain the ideal comfort level, while using less energy. This innovative system differs from conventional systems, which start and stop repetitively causing temperature variations and wasting energy.
This feature is just one of the smart technological advances that make the Mitsubishi Electric Cooling & Heating systems superior to other comfort conditioning options.
|
|
The advances in the heating performance of our systems are remarkable. Our H21® hyper-heating INVERTER technology can heat effectively even when temperatures outside are as low as -13° F. H2i systems can provide up to 100% heating capacity at 5° F and are extremely efficient. In fact, many qualify for ENEREGY STAR. Plus all of our heat pump systems feature Hot Start technology that delivers hot air from the very start of operation; that means no cold blasts or drafts.Our i-see™ Sensor automatically detects temperature disparities in a room, typically closer to the ceiling and the floor. It scans the room's ambient temperature readings and automatically adjusts airflow in the room. This process ensures that you always enjoy uniform comfort throughout the room.
Mitsubishi Electric Cooling & Heating uses advanced technology to bring you quality products that provide the ultimate in comfort and control while minimizing energy consumption. Mitsubishi Electric systems use two small refrigerant lines plus power and control wiring to connect an outdoor unit to each individual air handler. This allows for easy installation in new construction and causes minimal disruption if you are renovating or retrofitting your home.
The following features highlight the advanced technology, design, and components used in many Mitsubishi Electric Cooling & Heating systems:
- INVERTER Technology including INVERTER-driven compressors, electronic linear expansion valves, sensor and information processing components
- Advanced processors and system control provide computing power in the indoor units, outdoor units, and remote controllers
- Smart Coil™ design and operation uses multiple sensors to maintain coil temperature and regulates refrigerant superheat and subcooling for optimal capacity and performance
- Enhanced filtration systems use multiple layers of filtration to improve indoor air quality (IAQ) by helping to remove allergens and odors
- Hot-Start™ technology in heat pump systems prevents cool air from blowing during HEAT operation by regulating the fan on the indoor unit so that it does not blow any air until the unit coil has reached the correct operating temperature
- i-See™ Sensor scans the upper and lower areas of a room to detect hot or cold spots and adjust temperature and airflow settings in real-time to maintain consistent comfort throughout the space.
- Smart Controls on the wall or in your hand provide perfect function, temperature selection, and mode selection plus various timer and program options
With these and other technologies the Mitsubishi Electric comfort systems provide energy efficient, quiet and environmentally friendly solutions for your comfort needs.
|
 |
|
|
|
|
|
|
Mitsubishi Electric Mr. Slim® Split Air-conditioner and Heat-pump Systems
LIMITED WARRANTY
LIMITED WARRANTY STATEMENT
MITSUBISHI ELECTRIC M-SERIES SPLIT AIR-CONDITIONER AND HEAT-PUMP SYSTEMS
Subject to the terms and conditions of this Limited Warranty, the Cooling & Heating Division of MITSUBISHI ELECTRIC US, INC. (“MEUS”) warrants to the original purchaser of this M-Series product purchased on or after April 1, 2015 from a licensed HVAC contractor and installed by such contractor in the continental United States, Alaska and Hawaii, that:
A. The parts are warranted for a period of five (5) years to the original owner of the System. If any parts should prove defective due to improper workmanship and/or material for a period of five (5) years from the date of installation, MEUS will replace any defective part without charge for the part. Replacement parts are warranted for the remainder of the original 5-year warranty period. Parts used for replacement may be of like kind and quality and may be new or remanufactured. Defective parts must be made available to MEUS in exchange for the replacement parts and become the property of MEUS.
B. The compressor is warranted for a period of seven (7) years to the original owner of this System. If the compressor should prove defective due to improper workmanship and/or material for a period of seven (7) years from the date of installation, MEUS will replace the defective compressor without charge for the compressor. Replacement compressors are warranted for the remainder of the original 7-year warranty period. Compressors used for replacement may be of like kind and quality and may be new or remanufactured. Defective compressors must be made available to MEUS in exchange for the replacement compressor and become the property of MEUS.
C. Notwithstanding the foregoing, if the System is installed in a residential single-family home and registered within 90 days from installation, the parts and compressor will be warranted for a period of 10 years, to the original owner, so long as the original owner resides in the home. Specifically, if any parts and/or the compressor should prove defective due to improper workmanship and/or material for a period of ten (10) years from the date of installation, MEUS will replace any defective parts or compressor without charge for the part or compressor. The replacement parts and/or compressor are warranted for the remainder of the original 10-year warranty period. Parts and/or compressors used for replacement may be of like kind and quality and may be new or remanufactured. Defective parts and/or compressors must be made available to MEUS in exchange for the replacement parts and become the property of MEUS.
D. Notwithstanding the foregoing, if the System is installed in a residential single-family home by a MEUS DIAMOND CONTRACTOR and registered within 90 days from installation, the parts and compressor will be warranted for a period of 12 years, to the original owner, so long as the original owner resides in the home. Specifically, if any parts and/or the compressor should prove defective due to improper workmanship and/or material for a period of twelve (12) years from the date of installation, MEUS will replace any defective parts or compressor without charge for the part or compressor. The replacement parts and/or compressor are warranted for the remainder of the original 12-year warranty period. Parts and/or compressors used for replacement may be of like kind and quality and may be new or remanufactured. Defective parts and/or compressors must be made available to MEUS in exchange for the replacement parts and become the property of MEUS.
E. NO LABOR. These limited warranties do NOT include labor or any other costs incurred for service, maintenance, repair, removing, replacing, installing, complying with local building and electric codes, shipping or handling, or replacement of the System, compressors or any other parts. For items that are designed to be maintained or replaced by the original owner, the original owner is solely responsible for all labor and other costs of maintaining, installing, replacing, disconnecting or dismantling the System and parts (such as filters or belts) in connection with owner-required maintenance. Air filter cleaning and/or replacement for each applicable indoor unit are owner-required maintenance, and labor for this procedure is not covered under warranty. Please consult the applicable technical documentation for air filter cleaning and other maintenance procedures.
F. PROPER INSTALLATION. This Limited Warranty applies only to Systems that are installed by contractors who are licensed for HVAC installation under applicable local and state law, and who install the Systems in accordance with (i) all applicable building codes and permits: (ii) MEUS’s installation and operation instructions: and (iii) good trade practices.
G. REGISTRATION. To receive certain benefits under this Limited Warranty, as set forth in more detail above, the product must be registered within 90 days of installation. To register, the original owner may complete and return the postage-paid registration card by U.S. mail or may register the product online at www.mitsubishicomfort.com. MEUS Diamond Contractors may submit product registration information online via the extranet portal. Residents of California or Quebec need not register the product to receive warranty benefits, but are encouraged to do so.
BEFORE REQUESTING SERVICE, please review the applicable technical documentation to insure proper installation and correct customer control adjustment for the System. If the problem persists, please arrange for warranty service.
1) TO OBTAIN WARRANTY SERVICE:
a. Contact the licensed contractor who installed the System or the nearest licensed contractor, dealer or distributor (whose name and address may be obtained on our website at www.mehvac.com(link is external)) of any defect within the applicable warranty time period.
b. Proof of the installation date by a licensed contractor is required when requesting warranty service. Present the sales receipt, building permit or other document which establishes proof and date of installation. In the absence of acceptable proof, this Limited Warranty shall be deemed to begin one hundred twenty (120) days after the date of manufacture stamped on the System.
c. This Limited Warranty applies only to Systems purchased on or after April 1, 2015, only while the System remains at the site of the original installation, and only to locations within the continental United States, Alaska and Hawaii.
2) THIS LIMITED WARRANTY DOES NOT COVER: property damages, malfunction or failure of the System, or personal injury caused by or resulting from: (a) accident, abuse, negligence or misuse; (b) operating the System in a corrosive or wet environment, including those containing chlorine, fluorine or any other hazardous or harmful chemicals or environmental factors, including sea- or salt-water; (c) installation, alteration, repair or service by anyone other than a licensed contractor or other than pursuant to the manufacturer’s instructions; (d) improper matching of System components; (e) improper sizing of the System; (f) improper or deferred maintenance contrary to the manufacturer’s instructions; (g) physical abuse to or misuse of the System (including failure to perform any maintenance as described in the Operation manual such as air filter cleaning, or any System damaged by excessive physical or electrical stress; (h) Systems that have had a serial number or any part thereof altered, defaced or removed; (i) System used in any manner contrary to the Operation Manual; (j) freight damage; or (k) damage caused by force majeure or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power.
3) THIS LIMITED WARRANTY ALSO EXCLUDES: (a) SERVICE CALLS WHERE NO DEFECT IN THE SYSTEM COVERED UNDER THIS WARRANTY IS FOUND: (b) System installation or set-ups; (c) Adjustments of user controls; (d) Systems purchased or installed outside the continental United States, Alaska and Hawaii; or (e) Systems purchased or installed prior to April 1, 2015. Consult the operating instructions for information regarding user controls.
4) This Limited Warranty shall not be enlarged, extended or affected by, and no obligation or liability shall arise or grow out of, MEUS providing, directly or indirectly, any technical advice, information and/or service to original owner in connection with the System.
5) EXCEPT AS OTHERWISE PROVIDED IN THIS LIMITED WARRANTY, MEUS MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SYSTEM. MEUS DISCLAIMS AND EXCLUDES ALL WARRANTIES NOT EXPRESSLY PROVIDED HEREIN AND ALL REMEDIES WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OF THIRD PARTY RIGHTS, AND OF FITNESS FOR ANY PARTICULAR PURPOSE. NO ONE IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN ANY RESPECT OR TO CREATE ANY OTHER OBLIGATION OR LIABILITY FOR MEUS IN CONNECTION WITH THE SYSTEM. MEUS DISCLAIMS ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF ALL THIRD PARTIES (INCLUDING, WITHOUT LIMITATION, THE INSTALLING CONTRACTOR) IN CONNECTION WITH OR RELATED TO THE SYSTEM.
6) UNDER NO CIRCUMSTANCES SHALL MEUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, INFRINGEMENT OF THIRD PARTY RIGHTS, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, SYSTEM FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OR RELATED TO THE SYSTEM WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF MEUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL MEUS’S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE SYSTEM WITH RESPECT TO WHICH ANY CLAIM IS MADE.
7) SOME STATES DO NOT ALLOW LIMITATIONS ON WARRANTIES OR EXCLUSIONS OR LIMITATION OF DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY.
8) DISPUTE RESOLUTION. For any dispute with MEUS, you agree to first contact us by phone (800-433-4822) or e-mail (CustomerCare@hvac.mea.com(link sends e-mail)) or U.S. Mail at Mitsubishi Electric US, Inc., ATTN: Customer Care, 1340 Satellite Blvd., Suwanee, GA 30024, and attempt to resolve the dispute with us informally by providing your name, address, and contact information and describing the nature of the dispute. In the unlikely event that MEUS has not been able to resolve a dispute with you within 60 days of your original informal claim (or sooner if, in MEUS’s opinion, a dispute is not likely to be resolved within 60 days), we each agree to resolve any claim, dispute, or controversy arising out of or in connection with or relating to this Limited Warranty, or the breach or alleged breach thereof (collectively, “Claims”), by binding arbitration before an arbitrator from Judicial Mediation and Arbitration Services (“JAMS”) located in Gwinnett County, Georgia. JAMS may be contacted atwww.jamsadr.com(link is external) and will require you to pay an initial filing fee set by JAMS (unless you successfully apply for a waiver of this fee from JAMS). All other JAMS costs associated with the arbitration will be borne by MEUS. The arbitration will be conducted in Gwinnett County, Georgia, unless you request an in-person hearing where you live, or if you and MEUS agree otherwise. If the arbitrator decides in your favor, the award may include your costs of arbitration, your reasonable attorneys' fees and your reasonable costs for any expert and other witnesses, and any judgment on the award rendered by the arbitrator may be entered in any court of competent jurisdiction. If the arbitrator makes an award in your favor greater than MEUS's last written offer, MEUS will pay you the greater of the award or $500, plus your reasonable attorney's fees, if any, and reimburse any reasonable expenses (including reasonable expert witness fees and costs) that are reasonably accrued for investigating, preparing, and pursuing your claim in arbitration, as determined by the arbitrator or as agreed to by you and MEUS. Any judgment on the award rendered by the arbitrator may be entered in any court of competent jurisdiction. You may sue under state law in a small claims court of competent jurisdiction without first engaging in arbitration, but you must engage in arbitration before suing under the Federal Magnuson-Moss Act.
9) All claims must be brought in the parties’ individual capacity, and not as a plaintiff or class member in any purported class or representative proceeding. This waiver applies to class arbitration unless such arbitration is necessary to effectuate the enforcement of the court class action waiver or in the event that class arbitration is expressly agreed to by MEUS. You agree that you and MEUS are each waiving the right to a trial by jury or to participate in a class action.
10) You may opt-out of the foregoing arbitration and class action/jury trial waiver provision of this Limited Warranty by notifying MEUS in writing within 30 days of purchase. Such written notification must be sent to Mitsubishi Electric US, Inc., ATTN: Legal, 5900-A Katella Avenue, Cypress, CA 90630, and must include (1) your name, (2) your address, (3) your warranted product’s serial number, and (4) a clear statement indicating that you do not wish to resolve disputes through arbitration and demonstrating compliance with the 30-day time limit to opt-out.
11) If any clause herein is found to be illegal or unenforceable, that clause will be severed from this Limited Warranty and the remainder of the Limited Warranty will be given full force and effect. As noted above, if a class action waiver of both court and arbitration class actions is found unenforceable, class arbitration will be expressly allowed under the Limited Warranty.
12) Residents of California and Quebec do not need to register the product in order to get all of the rights and remedies of registered original owners under this warranty.
13) This Limited Warranty gives the original owner specific legal rights and the original owner may also have other rights that vary from state to state.
14) This Limited Warranty is valid only in the continental United States, Alaska and Hawaii, and it is not transferable.
|
|
|
|
FAQ'S ON DUCTLESS MINI SPLIT AIR CONDITIONERS - MOST COMMON QUESTIONS! |
|
Why choose us ?
SIMPLE WE HAVE ALL THAT YOU NEED AND LOT MORE!
1. Many options to compare - We have brands like Mitsubishi, Friedrich, LG, YMGI, Carrier, Sanyo, Fujitsu, Daikin, Klimaire, Shinco, Haier, Samsung etc. This means you have low to high end prices from different brands with several different options to choose from.
2. Good Warranty on all Air Conditioners - Most of our Split air conditioners have 5 years compressor and 3 years on parts. Some brands like Mitsubishi and LG offer 7 yrs on compressor and 5 yrs on part on several products.
3. Quality - Quality has always been our number one goal. We do not sell cheap brands with poor quality at cheap prices like some of other wholesalers do. We instead sell quality products at cheap prices instead by eliminating the middle man/agent. Our brands are one of the best in the industry and have excellent feedbacks and ratings from customers. You can compare the features with any top brands and you will see them all here on our website.
4. LOWEST PRICE GUARANTEE - We will not match but beat all the prices that you have from other stores and if we can't, we will give you a product FREE (see details) as long as we are comparing apples to apples.
5. We are listed with Better Business Bureau. SO REST ASSURED THAT YOU ARE BUYING FROM A RELIABLE COMPANY AND NOT SCAMMERS ONLINE. We have been selling air conditioners for decades.
6. GET FREE TECH SUPPORT FOR INSTALLATION WITH ALL OF OUR AC'S (Check all details on our website) .
7. Excellent after sales tech support - It's not all about selling the product, it is also about providing after sales services in case you need help with figuring out .
8. Need suggestions before purchase? Call us. With experienced staff on hand we can help you make the right decision that can not only effect your heating and cooling but also can help you save money on energy bills.
9. Fast shipping! We usually will ship the product same or next day. Our customers receive the packages normally within 1-5 business days once shipped.
10. New Versions! Advanced features! Complete packages With or without install kits! Find them all here...
What size unit is good for my application? How to choose the right AC?
Keep a pen and paper next to you and write down answers to below questions first. Then move to step 2.
A. First question is how many air handlers (indoor units) would you need?
Answer to this comes from the number of rooms you want to cool or heat. Remember since this is ductless, you will need ONE air handler per room. But if your kitchen, dinning area and living room are all connected and open to each other, in that case you will need just ONE for this entire area. But if your dinning room has walls around it with only a door size opening from the kitchen, in that case you may want to put ONE in kitchen and ONE in dinning room.
B. Are the rooms well insulated? If not we will call it "Situation B"
C. How many windows you have in each room? Are these energy efficient windows? (single pane or double pane windows). If you have 2-3 windows in one room and they are single pane windows that are not energy efficient, we will call it a "Situation C"
D. Then you need to know the height of your ceiling. Is it a regular ceiling or more than 10 ft high? If it has a high ceiling of 15 or 20 ft, we will call it is "Situation D"
E. Do you have any heat generating source in these rooms like sunlight, equipments, computers/server or kitchen etc? If yes, we will call it a "Situation E"
F. Last but not the least you need to know the sq ft of each room.
Once you have the above info, it gets simple then. Below table will help you decide and give you a approx. estimation of what you really need.
|
Please consult your HVAC installer before making your decision. Below info can help you decide, but it cannot be guaranteed accurate under different circumstances. |
BUY 9000 BTU Split AC? |
BUY 12000 BTU Split AC? |
BUY 18000 BTU Split AC? |
BUY 24000 BTU Split AC? |
|
If your room is Upto 300 sq ft without any bad situation B, C, D or E (Example: The room is 275 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
YES |
NO |
NO |
NO |
|
If your room is Upto 300 SQ FT with either one of the above bad situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 250 sq ft) |
MAYBE WILL WORK |
YES |
NO |
NO |
|
If your room is Upto 300 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
YES |
MAYBE (If it is a restaurant kitchen for example) |
NO |
|
|
|
|
|
|
|
If your room is between 300 - 500 sq ft without any situation B, C, D or E (Example: The room is 475 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
YES |
NO |
NO |
|
If your room is between 300 - 500 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 450 sq ft) |
NO |
MAYBE WILL WORK |
THIS IS BETTER OPTION |
NO |
|
If your room is between 300 - 500 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
YES |
MAYBE IF THE SITUATION WAS WORSE |
|
|
|
|
|
|
|
If your room is between 500 - 700 sq ft without any situation B, C, D or E (Example: The room is 675 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
NO |
YES |
NO |
|
If your room is between 500 - 700 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 650 sq ft) |
NO |
NO |
YES |
MAYBE |
|
If your room is between 500 - 700 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
MAYBE WILL WORK |
YES TO BE ON SAFER SIDE |
|
|
|
|
|
|
|
If your room is between 700 - 1000 sq ft without any situation B, C, D or E (Example: The room is 975 sq ft, house is well insluated, has double pane windows, it is a bedroom with regular ceiling. This means there is nothing wrong with the room conditions) |
NO |
NO |
NO |
YES |
|
If your room is between 700 - 1000 SQ FT with either one of the above situations B or C or D or E (Example: the house is well insulated and has energy efficient windows, but it is a sun room with lot of windows and is 950 sq ft) |
NO |
NO |
NO |
YES (MAYBE A 30,000 BTU NEEDED) |
|
If your room is between 700 - 1000 SQ FT with WORSE SITUATION (Example: the house is not insulated and has old windows that are not energy efficient) |
NO |
NO |
TWO 18000 BTU'S NEEDED A TOTAL OF 36000 BTUS |
NO |
|
|
|
|
|
|
|
For room more than 1000 sq ft, example it is a office space with 1500 sq ft, you will need more than one unit in that one big room for better circulation. So you can buy a 2-3 sinagles zone units or dual zone, trizone or a quadzone depending upon how big the room is as per above calculations. |
|
|
|
|
Now once you have decided how many units you need, it is time to see what features you want. Low Ambience Feature
For example if you live in New York where the temperature goes below 15 deg quiet a few times in a year and if you need this AC unit to do the heating job as well in the winter time, in that case DO NOT buy the standard SEER 13 without Low Ambience. You need the unit that has Low Ambience operation as they can produce heat in temperature as low as minus 4 deg or zero deg depending upon which unit you end up buying. YMGI/LG/Friedrich/Haier for example have units that produce heat in temperature as low as zero deg.
HIGH SEER AND INVERTER FEATURE
Units with high SEER and inverter techonlogy save you a lot of money on electricity bills. As much as $50 per month approx. So if you have a high SEER unit with Inverter which is $300 - $400 more than the standard unit with SEER 13, you still will be better off buying the expensive one, as after 6-8 months savings are all yours plus such units are lot more advanced with many other good features.
How does Inverter work?
INVERTER technology delivers precise cooling or heating power as per your choice.
It works faster and saves energy while ensuring uniform temperature.
In Depth details:
The inverter tag found on some air conditioners signifies the ability of the unit to continuously regulate its thermal power flow.
Traditional reverse-cycle air-conditioners use a heat pump that is either working at maximum capability or switched off, as the compressor's speed cannot be varied. In order to regulate temperature a thermistor is used to measure the ambient air temperature and switch the compressor on when the ambient air temperature is too far from the desired temperature.
Air-conditioners bearing the inverter tag use a variable-frequency drive to control the speed of the motor and thus the compressor. The variable-frequency drive uses a rectifier to convert the incoming AC current to DC and then uses pulse-width modulation of the DC current within an inverter to produce AC current of a desired frequency. The AC current is used to drive a brushless motor or an induction motor. As the speed of a brushless motor is synchronised to the frequency of the AC current, it is thus possible to build a compressor that can be run at different speeds. Similarly, the voltage and frequency can be varied as needed to efficiently run an induction motor at different speeds. A microcontroller can then sample the current ambient air temperature and adjust the speed of the compressor appropriately.
Eliminating stop-start cycles increases efficiency, extends the life of components, and helps eliminate sharp fluctuations in the load the air-conditioner places on the power supply.
The inverter principle has been applied to a wide range of household appliances including microwave ovens, washing machines, and so on.
How noisy are the units?
WHISPER QUIET OPERATION is one of the many reasons why they are very popular. The indoor units are typically no noisier than a standard domestic fan, but as they do make some noise, consideration should be given to their location.
|
|
Why choose a mini split air conditioner? What are the advantages of ductless split AC?
=> Whsiper quiet operation.
=> Energy efficient, save money on electric bills!
=> Lot cheaper than central air conditioner.
=> Easy installation procedure.
=> Long term solution, good for new additions or when replacing existing air conditioner.
A mini split air conditioner is a cost effective choice to central air conditioning. However, it is typically more expensive than a wall or window air conditioner and you need a professional to install it. Since the compressor sits outside the split air conditioner is very quiet and efficient. Since mini splits have no ducts, they avoid the energy losses associated with the ductwork of central forced air systems. Duct losses can account for more than 30% of energy consumption for space conditioning, especially if the ducts are in an unconditioned space such as an attic.
Mini split air conditioners are also sometimes easier to install than other types of air conditioning systems. For example, the hook-up between the outdoor and indoor units generally requires only a three inch hole through a wall for the conduit. Also, most manufacturers of this type of system can provide a variety of lengths of connecting conduits. So, if necessary, you can locate the outdoor unit as far away as 50 feet from the indoor evaporator depending upon which mini split AC you buy. This makes it possible to cool rooms on the front side of a building or house with the compressor in a more advantageous or inconspicuous place on the outside of the building.In comparison to other add-on systems, split air conditioners offer more flexibility in interior design options. The indoor air handlers can be suspended from a ceiling, mounted flush into a drop ceiling, or hung on a wall. Floor-standing models are also available with LG. Most indoor units have profiles of about seven inches deep and usually come with sleek, high tech-looking jackets.
|
| |
|
How will ductless mini split air conditioner look in my home or office? see below...
Mini Split AC is an amenity that has been designed to blend harmoniously with your home and offi ce interiors. These high performance, high quality appliances are offered in three beautiful designs. Unlike window mounted air conditioners of yesterday, the ductless mini split air conditioners are mounted high up on walls, not in windows, preserving your outdoor views for all to enjoy. See examples below:-
|
What is HSPF?
HSPF is the abbreviation for the Heating Seasonal Performance Factor. This factor rates the efficient operation of the heating portion of the heat pump. As the HSPF increases, the unit functions at a more efficient level. New units in the United States have HSPF ratings from 7.0 to 9.4.
Heating Seasonal Performance Factor-the total heating output in B.T.U's during it's normal usage period for heating divided by the total electrical energy input in watt hours during the same period
What is a Heat Pump and How Does It Work?
A Heat Pump is an electrical device that takes heat from one place and transfers it to another. A heat pump transfers heat by circulating environmentally friendly refrigerant through a cycle of evaporation and condensation. A compressor then pumps the refrigerant between two heat exchange coils. In one coil the refrigerant is evaporated at low pressure and absorbs the heat from the surroundings. The refrigerant is then compressed on the way to the other coil where it condenses at high pressure. Now the heat pump releases the heat it absorbed earlier in the cycle. This process is reversible for the summer months and the heat pump acts as a cooling system.
Why Purchase A Heat Pump?
A heat pump is the most energy efficient way to heat and cool your home.
Heat pumps utilize the renewable heat sources in our surroundings in order to produce heat. The air, ground and water provide useful heat that is warmed up by the heat pump and delivered into the home. Sources such as the air, ground and water provide more heat than realized and the heat pump makes use of these sources that are continuously heated by the sun.
WIth British Columbia's mild weather conditioins, having a heat pump is the most logical, environmentally friendly and efficient source of in-home heating and cooling.
How Do You Measure A Heat Pump's Efficiency?
Heat pumps provide both cooling and heating, so the efficiency is measured in two different ways. When the heat pump cools, a SEER rating or Seasonal Energy Efficiency Ratio measures the efficiency. The SEER rating is similar to gas mileage on a car. The higher the SEER rating the more efficient it is. Most of today's heat pumps have a SEER rating between 13.0 and 19.0 SEER. When the heat pump heats the home, a Heating Seasonal Performance Factor or HSPF rates the efficiency. The HSPF rating works the same way as the SEER rating does. The higher the HSPF, the more efficient the system is. Most new units today have a HSPF rating between 7.7 to 9.0 HSPF.
How does an air conditioner work?
An air conditioner seems as if it cools your home's air, but it actually makes your home less warm by removing heat from the indoor air and transferring that heat to the outdoor air. Heat is extracted from the home by passing indoor air across a refrigerant coil in the indoor unit. Refrigerant lines then carry the heat to the outdoor unit, where it is released into the outside air. The cooling cycle continues until the indoor temperature reaches the thermostat setting.
What does SEER mean?
Season Energy Efficiency Ratio. It is a system for rating the efficiency of air conditioning equipment. SEER is calculated by dividing the cooling capacity in BTU/H, of a continuously operating air conditioner, by the electric power input, or watts, of power consumed. The higher the SEER, the less the unit should cost to operate.
What is R-410A?
R-410A is a hydro fluorocarbon (HFC), which is an environmentally friendly refrigerant that is considered by most to be the likely replacement for R-22.
What is Freon/R-22?
Hydrochlorofluorocarbon (HCFC), known as R-22 has been used as a refrigerant for more than 40 years by HVAC manufacturers. While HCFC's are considered safe for the environment they do contain chlorine which is classed as an ozone-depleting chemical. The Clean Air Act set a target date of January 1, 2010 after which HVAC manufacturers can no longer build products that use R-22. Manufacturers of refrigerants will still be allowed to produce R-22 until January 1, 2020 after which time only recovery and recycling will provide R-22 for servicing older installed systems.
Is The Refrigerant Used In A Heat Pump Safe For The Environment?
Both Carrier and Lennox heat pumps use envronmentally friendly R-410A refrigerant. This refrigerant does not deplete the ozone layer and is seen as the logical replacement for Freon R-22. Carrier beat the competition by six years and introduced Puron refrigerant or R-410A. Use of R-410A adds to the efficiency and realiability of a heat pump.
Are there any good reasons for replacing my existing system if it is still functioning?
You should consider replacing your system if it is old, and therefore less efficient or if it will probably need major repairs in the near future. New systems can be 60% more efficient than systems built only 10 years ago. Normal wear and tear can reduce the efficiency of your system. Another costly season of utility bills or paying for an expensive failed part can go a long way toward the cost of a new system.
How do I know what to buy?
Make sure the unit that you select is the correct size for your needs. Systems that are too large or too small can be inefficient. We would be pleased to provide an energy analysis to show you the true operating cost. If someone in the family has allergies, an air filtration system should be part of the installation.
What does it mean to zone my house and why should I zone my house?
A zoning system is designed for the many ways you use your home. Maybe you're caught up in family "thermostat wars"? Or perhaps you have unoccupied areas that do not need conditioning? A Lennox® zoning system allows you to divide your home into separate areas, giving you the comfort and control you've always wanted. The main benefits of residential zoning are: Comfort Zoning meets the specific temperature and airflow requirements of one area, without affecting other areas. Efficiency A properly designed zoning system can save you hundreds of dollars in energy costs each year. Control Zoning divides the home into different areas and comfort into different levels, giving you more choices and control than ever before. Quiet Performance When integrated with variable speed and/or two-stage HVAC systems, zoning allows your heating and cooling equipment to deliver peak performance and efficiency without continually operating at peak capacity. Lower speeds mean lower sound levels.
What else might be needed if I replace my old system?
Beside the installation of new equipment, other items need to be inspected and possibly replaced, such as, thermostat, ducts, refrigerant piping, electrical service, wiring, condensate piping, insulation, flue piping and terminations, chimney liner, slabs, filter, registers, grills, drain pans and evaporator coil.
How often should I change or clean my filters?
Dirty filters should be replaced to prevent equipment from working harder, resulting in energy waste and possibly causing damage to your unit. Filters should generally be replaced every month when the system is running. Filters should be replaced with the same kind and size as your original filter. If the filter is not disposable, follow the manufacturer’s instructions for cleaning it.
Should I cover my outdoor unit in the winter?
Covering the unit is not necessary. Air conditioners are built to withstand a wide range of climate changes. Rain even helps keep your unit clean. Since heat pumps run all year long, they should not be covered.
What causes indoor air pollution?
Many everyday household items contribute to poor indoor air quality. Compounds found in carpeting, furniture, upholstery and drapery fabric consistently emit gas or fumes. Other sources of pollutants can include, but are not limited to, cleaning agents, paints and personal care products. Also, newer homes that are tightly sealed for energy efficiency tend to limit air circulation, which can contribute to a buildup of contaminants. Likewise, things like weather stripping and storm doors keep stale air in and fresh air out.
How can I improve my indoor air quality?
There are five basic strategies for outsmarting indoor air pollution: Identify the problem:
The first step toward better indoor air is to identify the types of pollutants present in the home. The best way to do this is to schedule an in-home air-quality test. Reduce concentrations of particles and bioaerosols
Routine cleaning and housekeeping helps reduce indoor air pollutants, but these simple fixes are not cure-alls. Some contaminants are so small that they may escape through the vacuum or never land on a surface. Lennox HEPA filtration systems, electronic air cleaners, high-efficiency air filters capture even the smallest of particles and bioaerosols. Reduce or eliminate chemical vapors and odors
Chemical vapors and odors can come from many different sources inside and outside the home. Once inside the home, these potentially toxic pollutants circulate through the ductwork, entering every room and living space. A Lennox air purification system removes and destroys 50% of household chemical vapors and odors within 24 hours. Ventilate Your Home
Today's modern homes are well-insulated and sealed to conserve energy, which means airborne pollutants have no way to escape. Lennox® ventilation systems help remove particles and bioaerosols by exchanging stale, recirculated indoor air with fresh, filtered outside air.
Control Temperature and Humidity
Improper humidity levels and high temperatures can actually increase concentrations of particles and bioaerosols. Lennox SignatureStat™ and thermostats regulate moisture levels and temperatures to improve indoor air quality and enhance comfort.
For Complete Installation Guide, you can click here |
| | |
| |
SHIPPING DETAILS
Mostly All Of Our Products Are Shipped Same Or Next Day
Your product will be mostly shipped using Freight Company such as SAIA, ESTES, Old Dominion, FEDEX or UPS and will be delivered in 1-5 business days depending upon your geographical location from our warehouses. We ship products from warehouses in NY, NJ, FL, CA,AZ, TX And MO. Mostly if you are close to our warehouses, you should receive the Product in 1-3 business days. We will email you your tracking number soon as its shipped out or you can log into your account on our website by using your email address and password you created at the time of placing order to check all the shipment and product details.
Please remember we only ship to 48 states within United States. Due to expensive shipment fee we do not ship to Hawaii & Alaska. We do not ship to Canada, Puerto Rico, Jamaica and other countries due to custom issues.
Though above shipment and delivery process is what we normally practice, under unforseen circumstances they cannot be guaranteed at all times. But we do our best and mostly succeed to ship the product either same or the next day.
Overnight Shipping Details (if required)
We can ship overnight or by Second Day Air. But beacuse these are air conditioners and the package weighs more than 90 pounds usually, shipping overnight can result in the package being mishandled and delivered damaged. Plus it cost anywhere from $180-$850 more than regular shipping depending upon your location from our warehouse. Feel free to email us with such enquiries.
|
Delivery Acceptance, Returns, Exchanges and Cancellation Policy. |
|
We truly appreciate your business and for the past 2 decades being in this business we have continued to do our best to earn customer trust with each transaction. We want you to be happy with your purchase.
100% Satisfaction is guaranteed with all your purchases. In case any of the RARE complications occur, we will handle them upto your best interest and satisfaction. |
|
Delivery Acceptance Terms:
If you receive a package that seems damaged or dented, please open the package in front of the driver and after inspection if you see the product has a severe damage you can refuse the package and call us immediately. We will then arrange a new shipment (Free Replacement) ASAP.
Please note: If the box looks visibly damaged, the product inside may still be in perfect condition as they are well padded for shipping purposes.
PLEASE DO NOT SIGN OR REFUSE THE PACKAGE WITHOUT INSPECTING THE CONDITION OF THE PRODUCT INSIDE. Please take pictures if needed, accept or refuse shipment based upon the condition of the product in the box, not based upon the condition of the box. Please remember if you signed off on a delivery document, insurance cannot be filed if cosmetic damage is found at a later date, as it is considered to have happened after delivery at jobsite.
If you need to get in touch with KINGERSONS, please call KINGERSONS customer service number at 1-386-951-1722 OR email us with your query. AS PER OUR WEBSITE, BELOW IS OUR EXCHANGE/RETURN POLICY FOR YOUR REFERENCE.
DEFECTIVE EXCHANGE
If unit (any product) is defective, depending upon the brand you buy, it will be taken care of by manufacturer warranty. Usually they will send out the replacement part within 24 hours, if replacing part is not a solution, they would probably replace the whole unit if the product was found defective. Replacement will only be made with the same model, if customer decides to upgrade or downgrade to a different model, we'll treat it as a return and a new order.
* All returns should be in original packaging and in brand new condition. Installed products are not considered brand new and cannot be returned.
* All damaged returns and replacements must be requested within 24 hours after the receipt of the product. *
Before shipping the product back, you should request an RA# (Return Authorization number), without an RA# your package will not be accepted, will be refused and sent back by the warehouse.
RETURNS
For all returns, customer is responsible to ship product back to our warehouse at their own expense; restocking fee of 19% will apply regardless if defective and original shipping fee (from $69 to $189 depending upon the product you purchased) will not be refunded as it is paid to the trucking company's and they are non-refundable.
CANCELLATIONS
If you placed the order and you wanted to cancel the order BEFORE IT IS SHIPPED, we will gladly cancel your order and $15.99 cancellation fee will be charged and 3% credit card processing charges will not be refunded. Please make sure that you call us within few hours after the order is placed. We ship the items out same or next business day. We cannot process cancellations after the product is shipped out. It will be considered as a return instead once the product is shipped and you will need to pay the return charges. If the delivery of the shipment is refused above return policy will apply. Once the item is shipped, the shipping company will not refund us the shipping fee back and will charge us for shipping both ways, this will not be refunded if cancelled after the product is shipped and 19% restocking fee will apply.
|
|
THANK YOU ONCE AGAIN FOR SHOPPING WITH US! | |
|
|
|
|
|
|
|
|
|
|
|
